Passenger bars

Custom Chutes, Inc. offers 3 different passenger bars (Multiflyer Bar Advance, Doubles Bar, Doubles Bar SP) to suit need of the parasail operator and their conditions. We have two bars that can fly up to 2 people and one bar that can fly up to 3 people. All our bars are made with anodized aluminum, stainless steel hardware and 2” polyester 3 ply straps.

The Multiflyer Bar Advanced is the latest version of the Multiflyer bar which is now has color coded safety areas and straps to make life easier for the operator, it is still designed to be used with parasails bigger than a 31’ size. Its weight adjustment slot allows the possibility to fly 1,2 or 3 people without needing to remove or change bars, this has led to many operators no longer need a doubles bar.

Features:

  • Rounded & beveled edged anodized aluminum bar.
  • Balance adjustment slot (20 lbs. increments).
  • Custom welded 12kn stainless steel locking hardware.
  • Fully articulating connection with reinforced connection hole.
  • 3 ply 2” polyester webbing passenger straps.
  • Color coded straps.
  • PFG’s
  • Padded cover with safeguard markings.
  • Weight 10 lbs.
db adv>

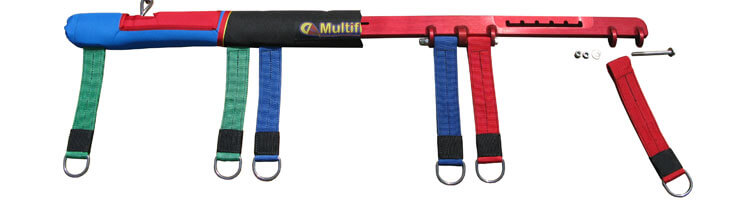

The bar has a weight adjuster at one end, allowing you to balance different weights. The bar for doubles can balance up to 230 lbs difference and as triples can balance up to 110 lbs difference. To see how the adjuster moves go to the Gallery.

Instructions for:

Multiflyer bar advanced instructions in lbs

Multiflyer bar advanced instructions in Kg



For reference the original Multiflyer bar, which was retired in 2013, was capable of balancing up to 172 lbs difference for doubles and 82 lbs difference for triples.

Instructions for:

Original Multiflyer bar instructions in lbs

Original Multiflyer bar instructions in Kg

multiflyer 01>
passenger bars 2 people>
passenger bars 3 people>

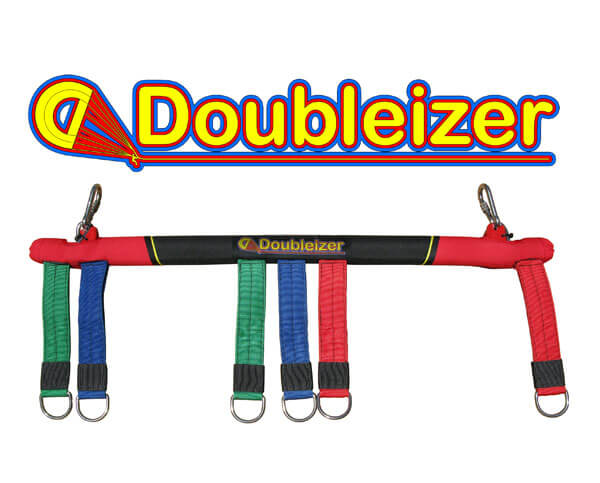

The Doubleizer Bar has been a mainstay of the parasail industry since the mid 90’s, a simple design to allow balancing of two people flying side by side, great for the operator that is looking only to fly two people. Through the years it has had minor tweaks to its design to keep up with changes to all the bars designs.

Features:

  • Rounded & beveled edged anodized aluminum bar.
  • Color coded straps.
  • Custom welded 12kn stainless steel locking hardware.
  • Fully articulating connection with reinforced connection hole.
  • 3 ply 2” polyester webbing passenger straps.
  • PFG’s
  • Padded cover with safeguard markings.
  • Weight 6 lbs.

The bar is capable of balancing up to 110 lbs difference.

Instructions for:

Doubleizer bar instructions in lbs/Kg

db image>

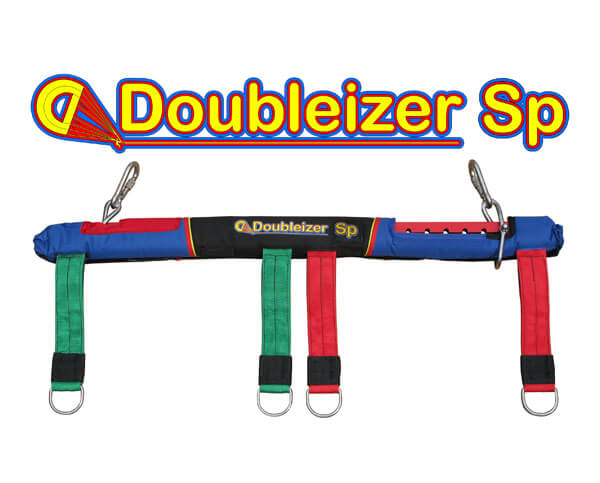

The Doubleizer Sp Bar is the newest in our passenger bars, its compact design allows it to be as narrow as possible but still fits two people side by side comfortably, it’s intended for use on small parasails in windy climates to enhance stability by keeping the weight close to the centerline of the parasail.

Features:

  • Rounded & beveled edged anodized aluminum bar.
  • Balance adjustment slot (25 lbs. increments).
  • Custom welded 12kn stainless steel locking hardware.
  • Fully articulating connection with reinforced connection hole.
  • 3 ply 2” polyester webbing passenger straps.
  • Color coded straps.
  • PFG’s
  • Padded cover with safeguard markings.
  • Weight 7 lbs.

The bar is designed to allow balancing of two people up to 135 lbs difference.

Instructions for:

Doubleizer Sp bar instructions in lbs/Kg

db sp>
MADE IN THE USA
