Passenger Bars

Passenger Bars

BarsCustom Chutes’ bars are made of aircraft grade aluminium and utilize all metal fully articulating connections to the parasail. No webbing is used to connect the bar to the parasail.

The Multiflyer Bar Advanced is the latest version of the multiflyer bar which is now color coded to make life easier, still designed to be used with parasails bigger than a 31. It is possible to fly 1,2 or 3 people without needing to remove the bar. The bar has a weight adjuster at one end, allowing you to balance different weights. The bar for doubles can balance up to 230 lbs difference and as triples can balance up to 110 lbs difference. To see how the adjuster moves go to the Gallery. On special order the original bar is available, this is capable of balancing up to 172 lbs difference for doubles and 82 lbs difference for triples.

Instructions for: MULTIBAR INSTRUCTIONS IN lbs, MULTIFLYER BAR ADVANCED INSTRUCTIONS lbs



The Doubleizer Bar has been a mainstay of the parasail industry since the mid 90’s, a simple design to allow balancing of two people flying side by side, the bar is capable of balancing up to 110 lbs difference.

The Doubleizer Sp Bar is the newest in our passenger bars, it’s compact design allows it to be as narrow as possible but still fits two people side by side comfortably, it’s intended for use on small parasails in windy climates. it’s designed to allow balancing of two people up to 135 lbs difference.

Instructions for: DOUBLEIZER BAR INSTRUCTIONS IN lbs kg, DOUBLEIZER BAR SP INSTRUCTIONS IN lbs kg

Multiflyer single occupant Multiflyer two occupants Multiflyer three occupants

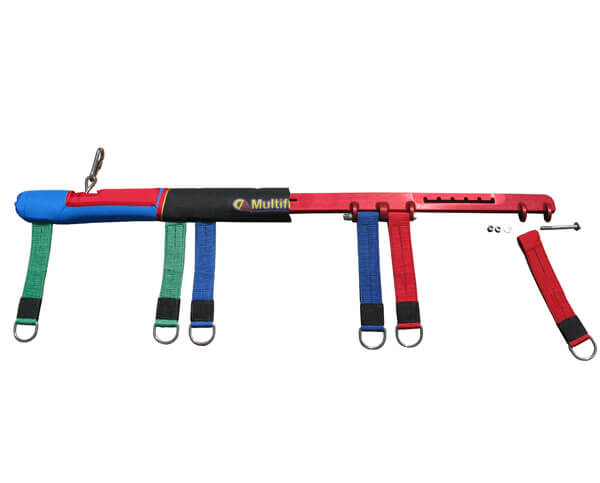

!!New!! Passenger Bars with Replaceable Straps

RS-BARSCustom Chutes’ bars are leaders in the industry in design and safety, we have seen reluctance for maintenance by the operator who is far from us when the passenger bar needs new straps. So we have designed a bar that the passenger straps can be replaced easily while keeping the superior strength and design of our bar.

Both the Doublizer Sp & Multiflyer Adv are avalible with the replaceble straps. The removable strap system has been laboratory tested to insure that we have a strong and reliable passenger bar like or regular passenger bars. The passenger straps are connected to the passenger bar with a 3/8″ stainless bolt which makes it easy to replace the straps.

RS-STRAPWhen replacement passenger straps for the bar are ordered they come with a new bolt.
