Commercial Parasails
Custom Chutes Inc. has spent many hours developing from the original 16-panel parasail into a high lift low drag parasail for commercial winchboat use. There is the intermediate (Xtreme), advanced (XXtreme) ,super advanced (infinity 8) and new from 2019 hyper advanced (XXXtreme) . These are not for beach use click here for beach.
Custom Chutes Inc. uses two materials for manufacturing its parasails, 1.9oz silicone coated 6.6 Ripstop nylon and 1.3oz silicone coated 6.6 Ripstop nylon that are constructed & coated in the USA. Both these materials come in a wide range of colors, are built to the same in strength, but are used in different circumstances. All parasails of sizes 21’ to 35.5’ are made in 1.9oz material (unless otherwise requested) this makes the parasail heavier which helps with parasail handling in strong wind. All parasails of sizes 34’ to 52’ are made in 1.3oz material (unless otherwise requested) this makes the parasail lighter, more efficient, easier to inflate and keep in the air.
All parasails are built to the highest standards, using our 2000 lbs. test polyester shroud lines and tow yokes made with 3 layers of our 5000 lbs. polyester webbing. Tow yoke triangles for a second passenger are no longer standard on the parasail but can be easily added on your request.

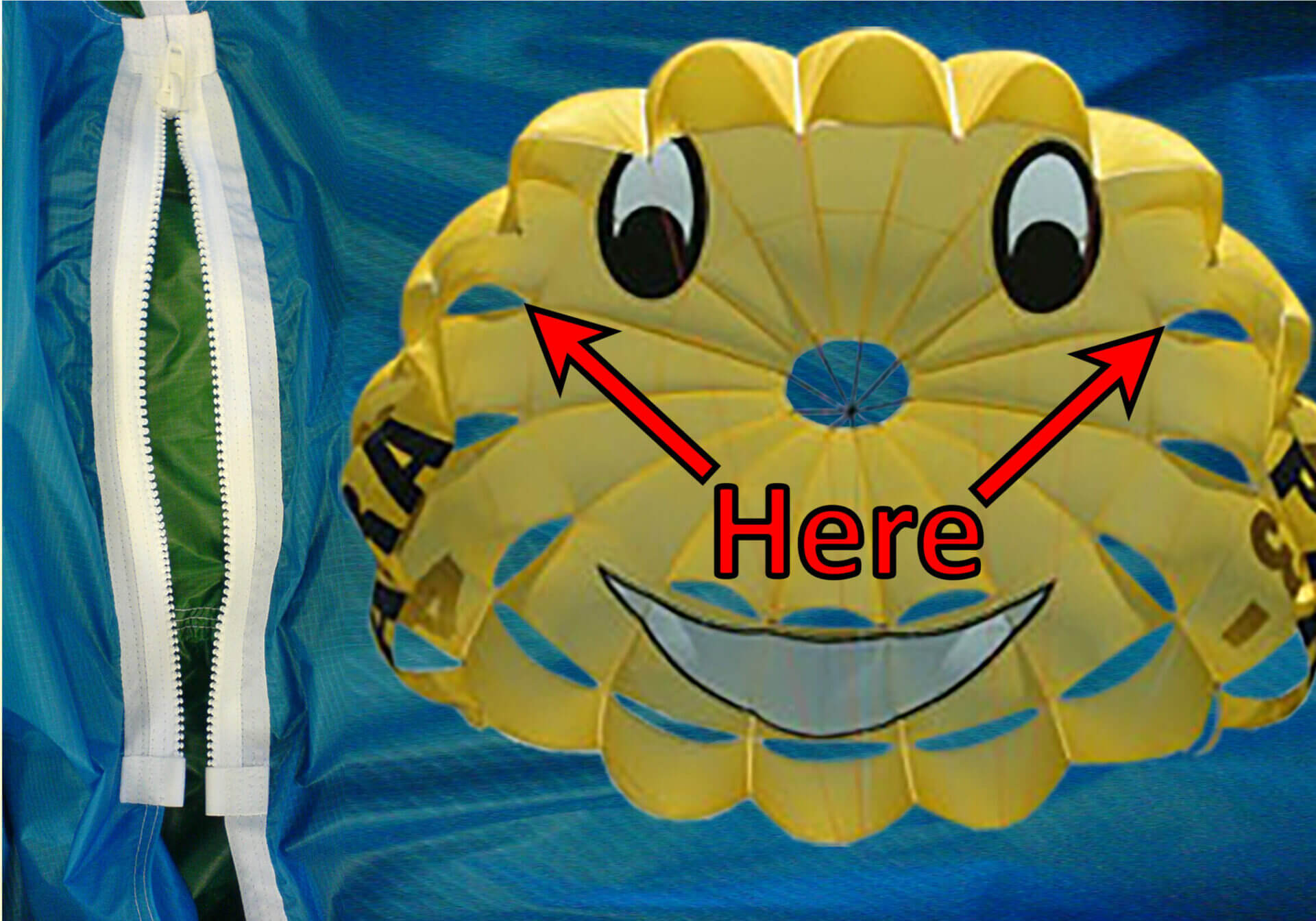

All parasails come with trim zippers; these are located in the front G panels. These are for trimming purposes only and DO NOT create more lift if both are closed, just drag that some people mistake as lift.
For trimming instructions click the link below:

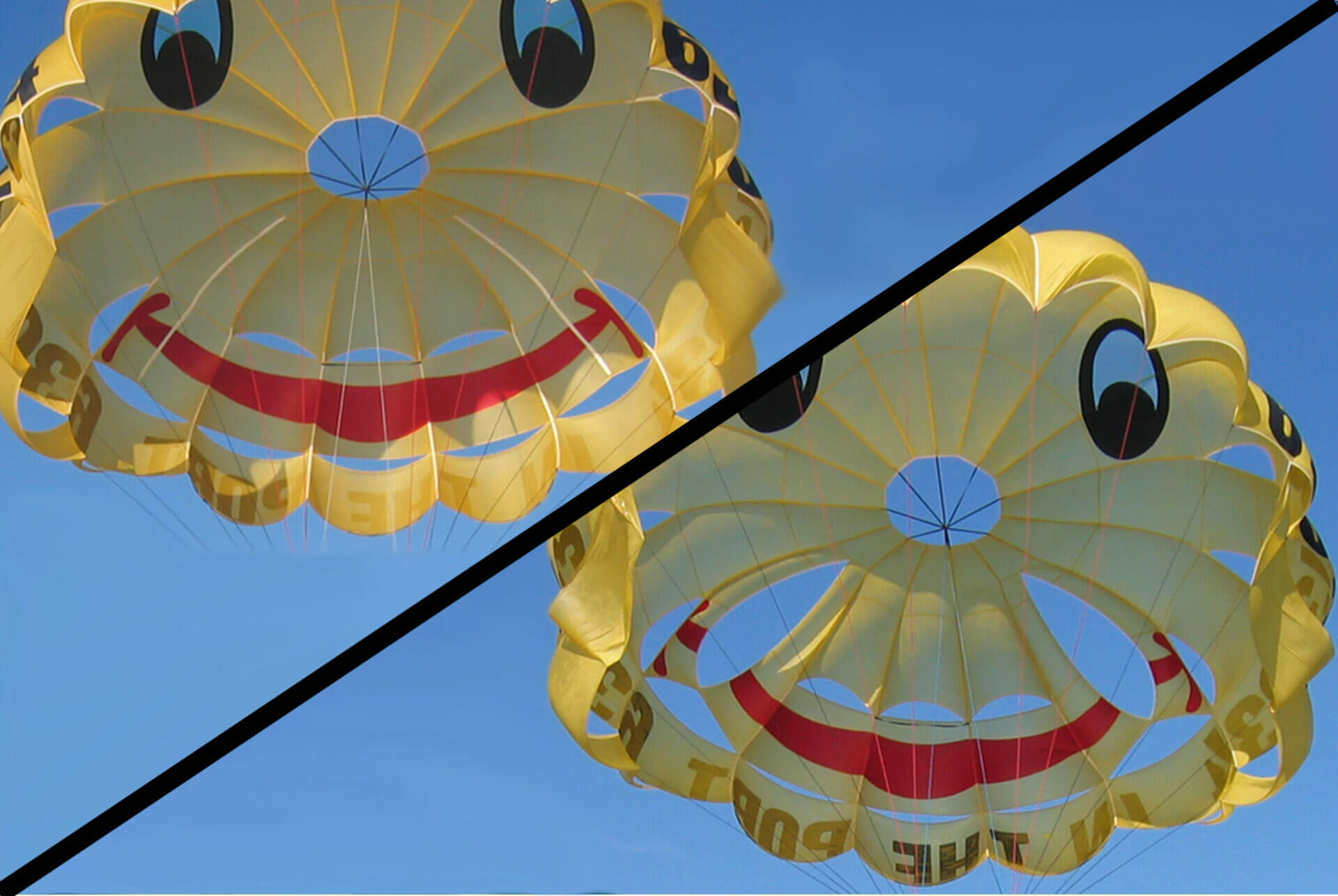

All sizes marked HIWIND (H/W) or any parasail with air dumpers come with Air Management Zippers (old name high wind zippers) as standard, in any other size they are an optional extra. Air Management Zipper allow the parasail to operate in 1 to 2 mph more wind speed above its normal operational wind speed which in parasailing can make a difference and can assist when carrying a payload from the lower range of the parasail in the higher end of its operational wind speed. When using Air Management Zippers both should be fully open or fully closed, NEVER partly opened.
Air Management Zippers should never be used to trim the parasail.
ATTENTION From august 2014 all new .5 range parasails do not come with the buckles on the Air Dumper vents due to many operators miss use of them (are available on request), the Air Dumper vents allow the parasail to manage turbulent air better. This allow the parasail to be more stable in turbulent conditions, making it easier and safer for the operator.
Size Tables
Size chart
Click on the Parasail size to view chart
| Size | M² | Weight | Wind Speed
(A/M) |
Desc |
|---|---|---|---|---|
| HP 300 | 56.7 | 100-300 lbs | 20-30/32 mph | Heavy Singles / Light – Medium Doubles |
| HP 350 | 65.7 | 110-350 lbs | 16-26/28 mph | Heavy Singles / Light – Medium Doubles |
| HP 400 | 79.1 | 120-400 lbs | 14-24/26 mph | Heavy Singles/ Heavy Doubles / Light Triples |
| MP 475 | 97.1 | 130-475 lbs | 10-20/22 mph | Heavy Singles/ Heavy Doubles / Medium Triples |
| MP 500 | 113.7 | 140-500 lbs | 8-18/20 mph | Heavy Doubles / Medium – Heavy Triples |
| LP 550 | 132 | 150-550 lbs | 0-14/16 mph | Heavy Doubles / Heavy Triples |
| LP 600 | 151.1 | 160-600 lbs | 0-12/14 mph | Heavy Doubles / Heavy Triples |
| LP 650 | 178.7 | 200-650 lbs | 0-11/13 mph | Heavy Doubles / Super Heavy Triples |
| LP 700 | 198.2 | 220-700 lbs | 0-10/12 mph | Heavy Doubles / Super Heavy Triples |
HP: High Wind Parasail, MP: Medium Wind Parasail, LP: Low Wind Parasail.
All HP’s and MP’s come with Air Management Zippers (A/M), other sizes they can be added.
Wind speed and weights in Kph and Kg
All ranges of our parasails are marked with a maximum windspeed for the A/M zippers open or closed. When operating in gusty wind conditions do not exceed more than 15 % above the stated maximum windspeed for that parasail size and configuration during gust.
Size chart
Click on the Parasail size to view chart
| Size ft / m² | Name | Weight | Wind Speed
(A/M) |
Desc |
|---|---|---|---|---|
| 21′ / 34.9 | HI/Wind | 75-200 lbs | 18-28/29 mph | Singles/ Hi-Wind Heavy Singles |
| 23′ / 45.8 | HI/Wind | 80-250 lbs | 18-28/29 mph | Singles/ Heavy Singles |
| 27′ / 58.6 | HI/Wind | 90-380 lbs | 15-25/26 mph | Singles/ Heavy Singles/ Hi-Wind Light Tandem |
| 27.5′ / 58.6 | HI/Wind | 100-380lbs | 16-26/27 mph | (As 27) Good for off shore turbulent air |
| 29′ / 63.5 | HI/Wind | 90-390 lbs | 14-24/25 mph | Singles/ Light Tandem |
| 29.5′ / 63.5 | HI/Wind | 100-390lbs | 16-25/26 mph | (As 29) Good for off shore turbulent air |
| 31′ / 73.8 | HI/Wind | 110-400lbs | 13-23/24 mph | Singles/ Heavy Singles/ Hi-Wind Tandems |
| 31.5′ / 73.8 | HI/Wind | 120-400lbs | 15-25/26 mph | (As 31) Good for off shore turbulent air |
| 33′ / 84.6 | HI/Wind | 115-450lbs | 10-20/22 mph | Heavy Singles/ Tandems/ Hi-Wind Gondola |
| 33.5′ / 84.6 | HI/Wind | 125-450lbs | 12-22/24 mph | (As 33) Good for off shore turbulent air |
| 34.5′ / 93.9 | Super Chinook | 125-450lbs | 10-20/22 mph | (As 35) Good for off shore turbulent air |
| 35′ / 102.4 | Eagle | 115-500lbs | 0-15 mph | Tandems/ Heavy Tandems/ Light Triples |
| 35.5′ / 102.4 | Super Eagle | 135-500lbs | 8-18/20 mph | (As 35) Good for off shore turbulent air |
| 37′ / 115.8 | Tristar | 120-525lbs | 0-14 mph | Tandems/ Heavy Tandems/ Triples |
| 37.5′ / 115.8 | Super Tristar | 140-525lbs | 6-16/18 mph | (As 37) Good for off shore turbulent air |
| 38′ / 128.3 | Stratus | 150-560lbs | 0-12 mph | Tandems/ Triples/ Gondola New 2014 |
| 39′ / 139.3 | Galaxy | 160-580lbs | 0-12 mph | Tandems/ Heavy Tandems/ Triples New 2014 |
| 40.5′ | Total Eclipse | 160-580lbs | 0-12 mph | Model Retired End of 2013. 2014 39′ is Replacement Model |
| 41′ / 151 | Total Eclipse | 160-600lbs | 0-12 mph | Heavy Tandems/ Triples/ Gondola |
| 42′ / 146.5 | Airbus | 180-600lbs | 0-12 mph | Heavy Tandems/ Triples/ Gondola |
| 46′ / 174 | XXX Gondola | 200-650lbs | 0-10 mph | Heavy Triples/ Gondola |
| 52′ / 217.9 | B-52 | 225-700lbs | 0-10 mph | Heavy Triples/ Gondola |
All HI/Wind come with Air Management Zippers (A/M), other sizes they can be added.
Wind speed and weights in Kph and Kg
All ranges of our parasails are marked with a maximum windspeed for the A/M zippers open or closed. When operating in gusty wind conditions do not exceed more than 15 % above the stated maximum windspeed for that parasail size and configuration during gust.
Size chart
All Xtreme High Wind range Parasails have been discontinued as of 2014. Please refer to a XXtreme Parasail equivalent for your new Parasail
Click on the Parasail size to view chart
| Size | Name | Weight | Wind Speed | Desc | XXtreme Equivalent |
|---|---|---|---|---|---|
| 25′ | HI/Wind | 100-280lbs | 18-25 mph | Singles/ Heavy Singles | 27.5′ |
| 28′ | HI/Wind | 110-380lbs | 18-23 mph | Singles/ Heavy Singles/ Light Tandems | 29.5′ |
| 30′ | Trade H/W | 120-450lbs | 15-20 mph | Heavy Singles/ Tandems | 31.5′ |
| 32′ | Pegasus H/W | 140-450lbs | 15-20 mph | Tandems/ Light Triples | 33.5′ |
Size chart
All Xtreme range Parasails have been discontinued as of 2014. Please refer to a XXtreme Parasail equivalent for your new Parasail
Click on the Parasail size to view chart
| Size | Name | Weight | Wind Speed | Desc | XXtreme Equivilent |
|---|---|---|---|---|---|
| 30′ | Trade | 90-380 lbs | 12-20 mph | Singles/ Light Tandems | 29′ |
| 32′ | Pegasus | 100-400 lbs | 10-18 mph | Singles/ Tandems | 31′ |
| 34′ | Chinook | 110-425 lbs | 0-16 mph | Heavy Singles/ Tandems | 33′ |
| 36′ | Hercules | 120-500 lbs | 0-15 mph | Heavy Singles/ Tandems/ Light Triples | 35′ |
| 38′ | Stratus | 140-525 lbs | 0-12 mph | Tandems/ Heavy Tandems/ Triples | 37′ |
| 40′ | Eclipse | 160-560 lbs | 0-12 mph | Heavy Tandems/ Triples/ Gondola | 38′ |
Size chart
All Infinity 8 Panel range Parasails have been discontinued as of 2017. Please refer to a XXtreme Parasail for your new Parasail
| Size | Name | Weight | Wind Speed | Desc |
|---|---|---|---|---|
| 23′ | Tornado | 80-250 lbs | 20-30 mph | Singles/Hi-Wind Heavy Singles |
| 27′ | Hurricane | 90-380 lbs | 18-28 mph | Singles/Heavy Singles/Hi-WindLight Tandem |
| 31′ | Cyclone | 110-400lbs | 15-25 mph | Singles/Heavy Singles/Hi-Wind Tandems |

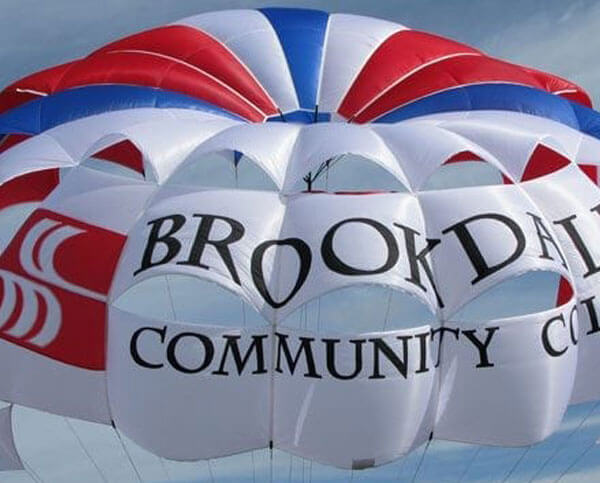

Customization
We can copy any logo within reason provided we are supplied with the artwork and advise you where to place it within the chute for maximum exposure.
The logos are made in ripstop fabric, sewn into the chute, not painted on or screen-printed so this will not peel or wear off. There are some customizations that can be made to our standard formats. e.g., telephone numbers, stars & stripes, Smileys, skull & crossbones and superman.
With supplied art work we can provide a computerized artistes impression to help visualize the finished parasail.
View the gallery to see more Custom Parasails
