Commercial Watersports 1200

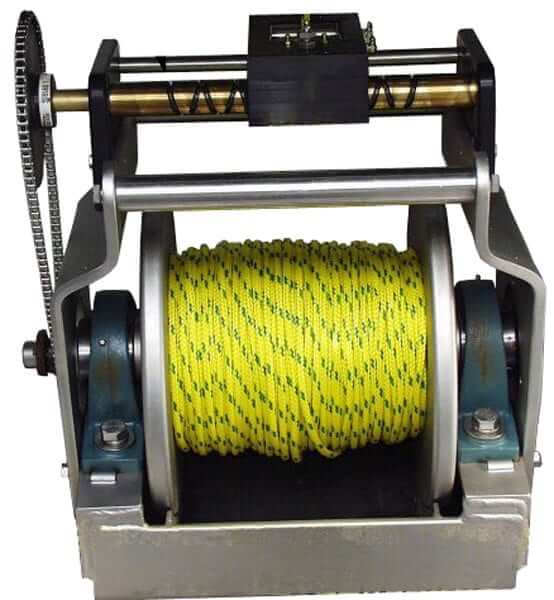

All stainless steel winch drum with levelwind system for replace or upgrade for all CWS boats.

Category:

Product Description

Material: Stainless steel
Dimensions: 28”H x 26”W x 17”D
Recommended Capacity: 1200’ 3/8th – 1000’ 7/16th
Bearings: Ball race
Width with motor & brake: 40”
Width from center to back of motor: 27”

Max Capacity: 2000′ 5/16th – 1300’ 3/8th – 1000’ 7/16th
Max Pulling Power with whites motor: 6306 lbs.
Pulling Power @ Recommended Capacity with whites motor: 1842 lbs. with 3/8th or 1760 lbs. with 7/16th
Max Speed @ Recommended Capacity with whites motor: 8.5 mph with 3/8th or 8.5 mph with 7/16th

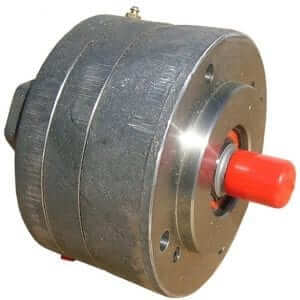

Max Pulling Power with HP  brake motor: 5739 lbs.
Pulling Power @ Recommended Capacity with Char Lynn motor: 1651 lbs. with 3/8th or 1635 lbs. with 7/16th
Max Speed @ Recommended Capacity with Char Lynn motor: 10 mph with 3/8th or 10 mph with 7/16th

Accessories available…
