Custom Chutes Inc. CCAL 1200

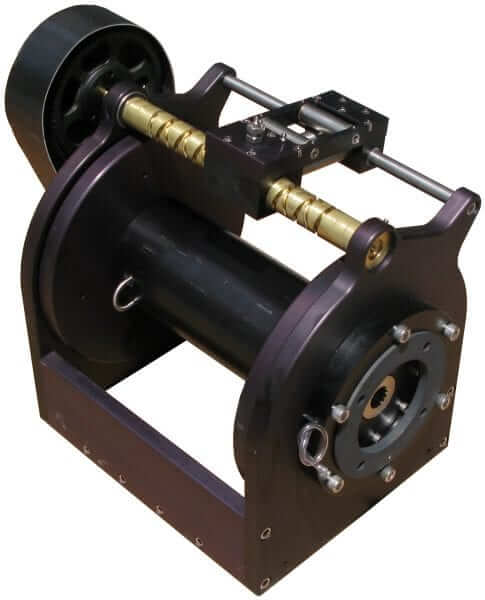

NEW Upgraded all anodized aluminum winch drum with levelwind system for replace or upgrade of older CWS boats (Nordic, old OP’s), Centurions or good for home build/conversation boats.
Features:

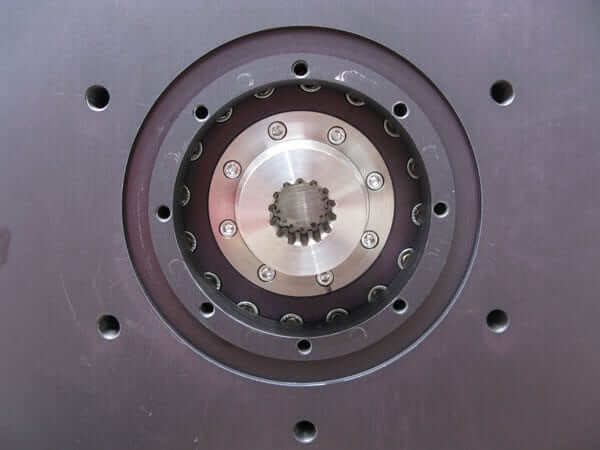

New built in and replaceable drum coupler

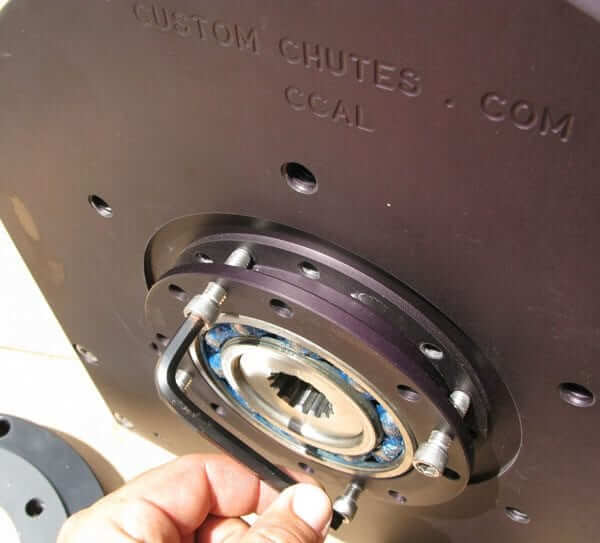

Large greaseable and easy changeable drum bearings
Brass spacers for rollers
Available with chain or belt drive for levelwind system

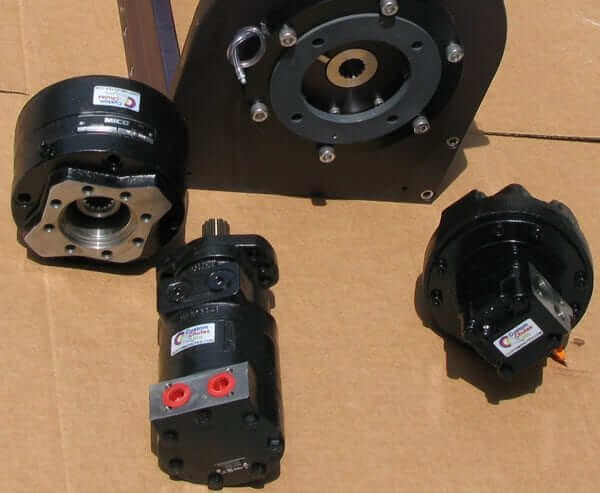

Fits both types of motor-brake setups
Description
Material: Type III anodized aluminum
Dimensions: 22”H x 23”W x 15 1/2”D
Weight: 160 lbs.
Recommended Capacity: 1000’ 3/8th or 800’ 7/16th
Bearings: Large 4 3/8″ ball race
Width with whites motor & brake: 37”
Width from center to back of whites motor & brake: 25 1/2”
Width with HB brake motor: 34”
Width from center to back of HB brake motor: 22”
Max Capacity: 1700′ 5/16th – 1100’ 3/8th – 850’ 7/16th
Max Pulling Power with whites motor: 4275 lbs.
Pulling Power @ Recommended Capacity with whites motor: 1985 lbs. with 3/8th or 1930 lbs. with 7/16th
Max Speed @ Recommended Capacity with whites motor: 8 mph with 3/8th or 8 mph with 7/16th
Max Pulling Power with HB brake motor: 3761 lbs.
Pulling Power @ Recommended Capacity with HB brake motor: 1836 lbs. with 3/8th or 1698 lbs. with 7/16th
Max Speed @ Recommended Capacity with HB brake motor: 8.5 mph with 3/8th or 9 mph with 7/16th
