Custom Chutes Inc. CSG

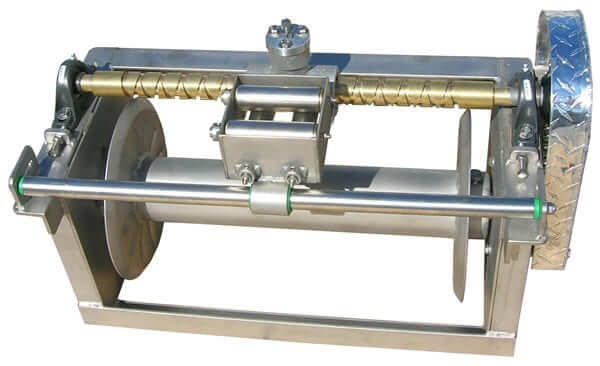

All stainless steel winch drum with levelwind system for replace or upgrade of Premium boat or good for home build/conversation boat

Category:

Description

Material: Stainless steel
Dimensions: 19”H x 32”W x 15”D
Recommended Capacity: 1200’ 3/8th or 1000’ 7/16th
Bearings: Ball race
Width with motor & brake: 41”
Width from center to back of motor: 25”

Max Capacity: 1900′ 5/16th – 1400’ 3/8th – 1000’ 7/16th
Max Pulling Power: 5548 lbs.
Pulling Power @ Recommended Capacity: 2053 lbs. with 3/8th or 1986 lbs. with 7/16th
Max Speed @ Recommended Capacity: 8 mph with 3/8th or 7.5 mph with 7/16th
