Custom Chutes Inc. WMN

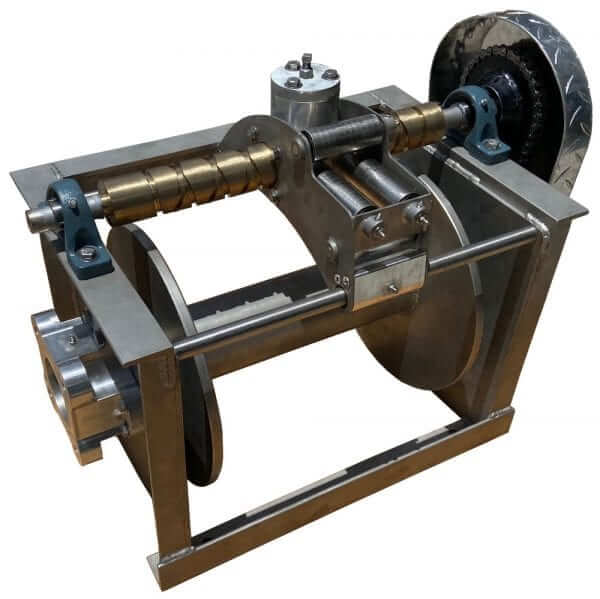

All stainless steel winch drum with levelwind system for replace or upgrade of Premium boat or good for home build/conversation boat

Features:

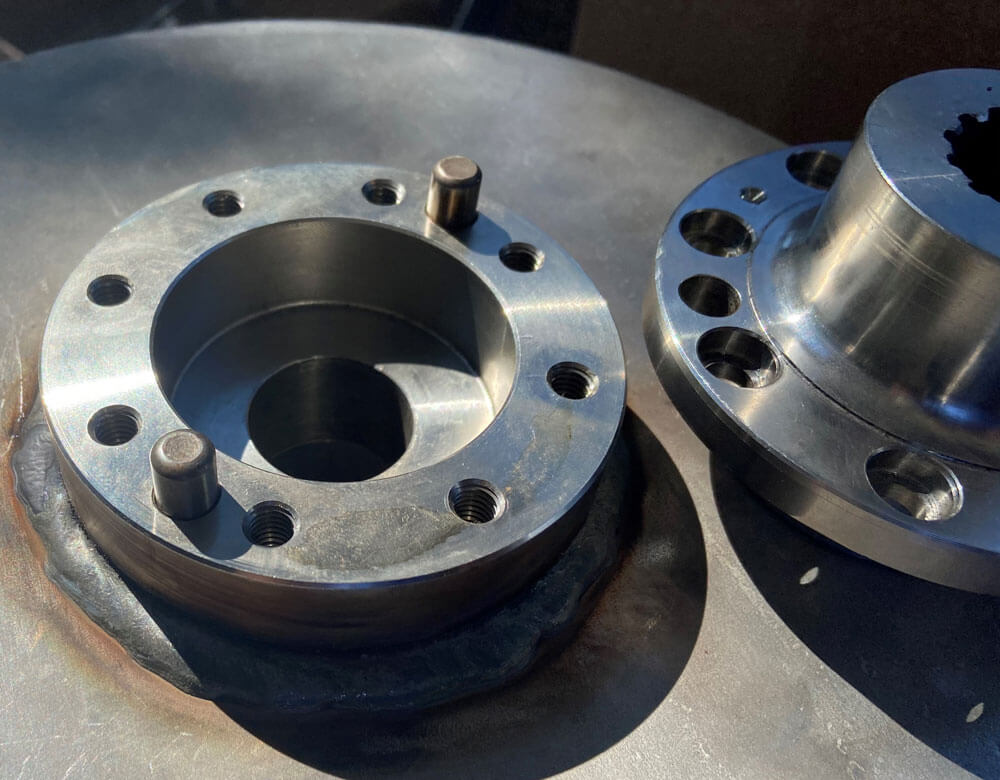

Replaceable spline coupler
Double guide bar

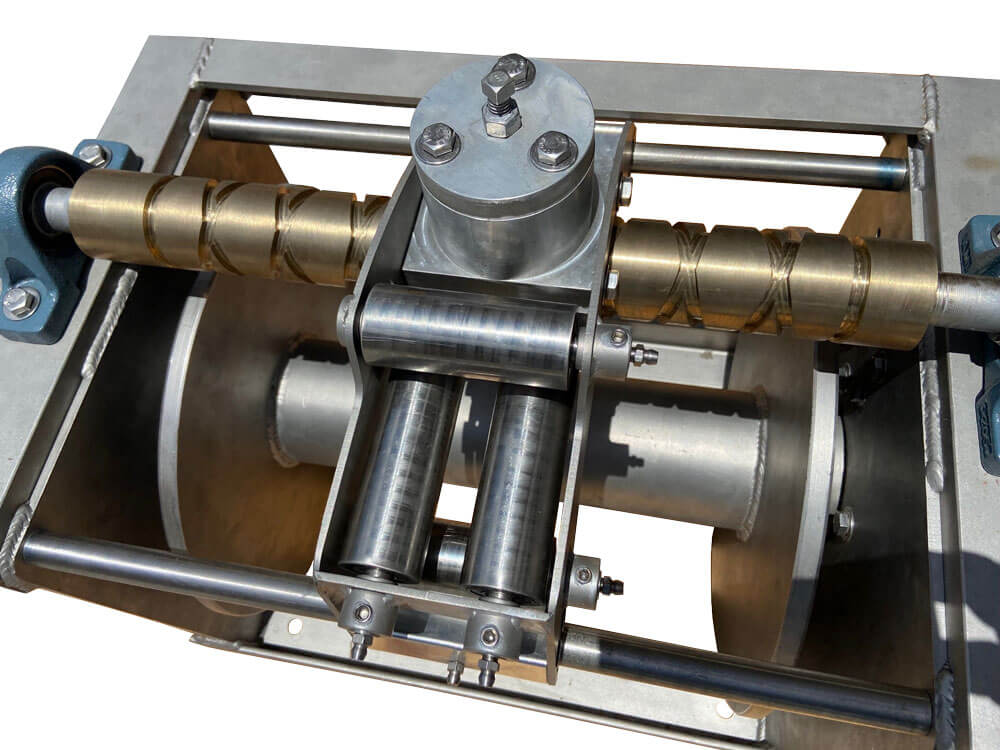

2″∅ Levelwind bar
Ball race bearing rollers


Category:

Description

Material: Stainless steel
Dimensions: 21”H x 26”W x 15 1/2”D
Weight: 190 lbs.
Recommended Capacity: 1200’ 3/8th or 1000’ 7/16th
Bearings: Ball race
Width with HP  brake motor: 35 1/2”
Width from center to back of HB  brake motor: 22”
Width with whites motor & brake: 39”
Width from center to back of whites motor & brake: 25 1/2”

Max Capacity: 1900′ 5/16th – 1450’ 3/8th – 1050’ 7/16th
Max Pulling Power with HB  brake motor: 5548 lbs.
Pulling Power @ Recommended Capacity with HB  brake motor: 1697 lbs. with 3/8th or 1666 lbs. with 7/16th
Max Speed @ Recommended Capacity with HB  brake motor: 7 mph with 3/8th or 7.5 mph with 7/16th
Max Pulling Power with whites motor: 6306 lbs.
Pulling Power @ Recommended Capacity with whites motor: 1991 lbs. with 3/8th or 1893 lbs. with 7/16th
Max Speed @ Recommended Capacity with whites motor: 6 mph with 3/8th or 6.5 mph with 7/16th
